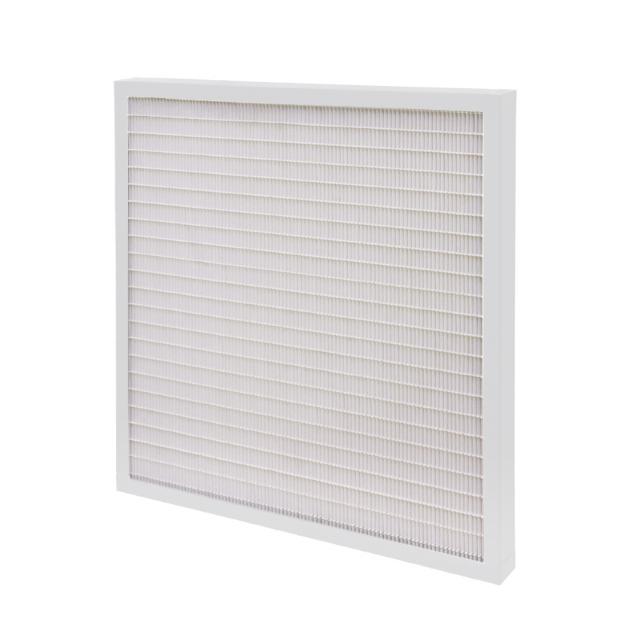

Panel filter ISO ePM1 60%/F7 590x732x92mm VEX 150
Number: PAD7 VX150
Customer Service
Mai Kaas-Hansen
Panel filter for air conditioning and ventilation systems with pre-filtration
| Number | PAD7 VX150 |
| Name | Panel filter ISO ePM1 60%/F7 590x732x92mm VEX 150 |
| Classification list |
|
Add to cart and request a quote to get a price.
SPACER
Your are not logged in
You have to log in to see our prices and to make purchases in the webshop.
Compact and economical
Large filtering area
High efficiency
Tested for contact with food cf. EC 1935/2004
Certified non-reactive to microbial growth
Specifications
| Applications | Comfort ventilation , Industrial and process ventilation , Food contact , Cleanrooms |
| Width | 730 mm |
| Height | 590 mm |
| Depth | 97 mm |
| Filterklasse | ISO 16890: ePM1 60% (EN 779: F7) |
| Filter media | Fiberglass |
| Filter frame | Fibre plastic |
| AirFlow [m³/t] | 3700 |
| Initial pressure drop [Pa] | 90 |
| Final pressure drop recommended | 250 |
| Operating temperature max. [C°] | 70 |
| Relative humidity [%] | 100 |
