Filter media ISO Coarse 90%/M5, 2x20 m
Number: C3-300
Customer Service
Mai Kaas-Hansen
100% synthetic and thermally bonded filter media.
| Number | C3-300 |
| Name | Filter media ISO Coarse 90%/M5, 2x20 m |
| Classification list |
|
Add to cart and request a quote to get a price.
SPACER
Your are not logged in
You have to log in to see our prices and to make purchases in the webshop.
Stiff and strong filter media – ideal for many applications
Classified and quality tested according to ISO 16890
Resistant to evaporated solvents
Fire retardant - safe use cf. DIN 53438

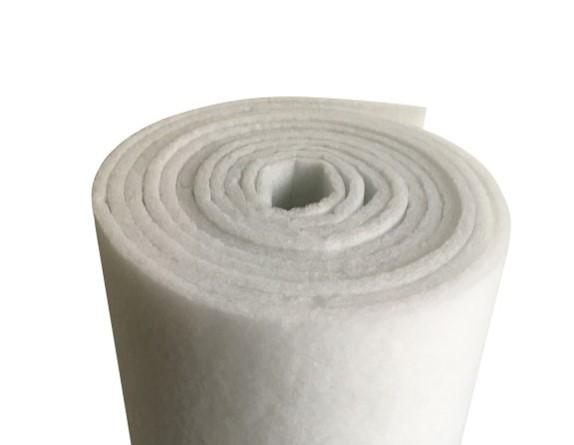

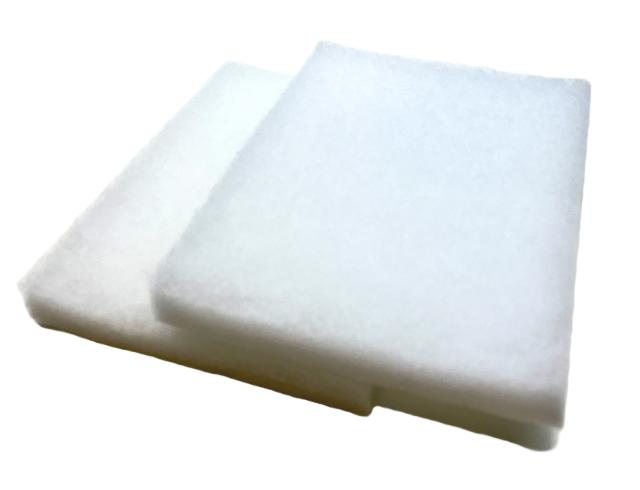

Supplied as rolls or mats in many sizes
Specifications
| Applications | Comfort ventilation , Industrial and process ventilation , High temperature |
| Width | 2000 mm |
| Length | 20000 mm |
| Thickness | 18 mm |
| Filterklasse | ISO 16890: Coarse 90% (EN 779: G4/M5) |
| Filter media | Synthetic |
| Final pressure drop recommended | 450 |
| Relative humidity [%] | 100 |
| Operating temperature max. [C°] | 100 |
| Max. temperature short peaks [C°] | 120 |
| AirFlow [m³/t] | 900 |
| Initial pressure drop [Pa] | 15 |
