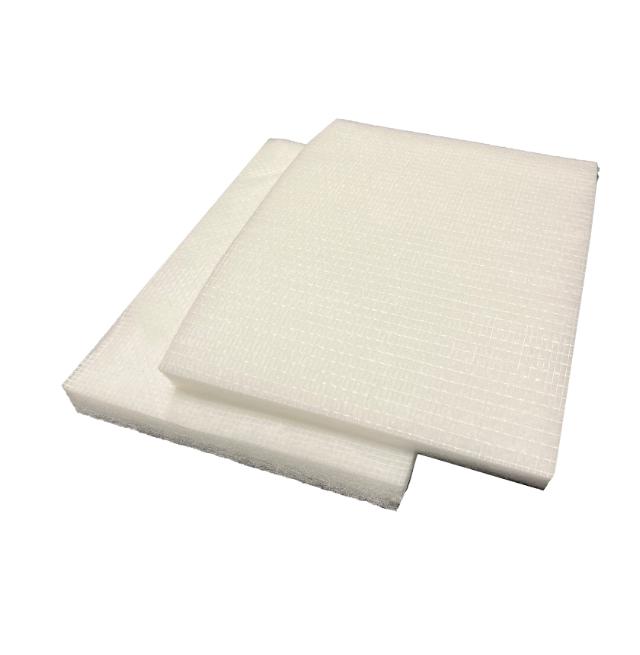

Filter mat ISO ePM10 55%/M5, 2x20 m
Number: FF-560G
Customer Service
Mai Kaas-Hansen
High-quality ceiling and diffusion medium
| Number | FF-560G |
| Name | Filter mat ISO ePM10 55%/M5, 2x20 m |
| Classification list |
|
Add to cart and request a quote to get a price.
SPACER
Your are not logged in
You have to log in to see our prices and to make purchases in the webshop.
Effective filtration barrier against paint particles
Tested and quality assured according to ISO 16890
High temperature resistance – up to 180°C
F1-classified according to European fire standard DIN 53438
Specifications
| Applications | Industrial and process ventilation , High temperature |
| Width | 2000 mm |
| Length | 20000 mm |
| Thickness | 22 mm |
| Filterklasse | ISO 16890: ePM10 50% (EN 779: M5/M6) |
| Filter media | Synthetic |
| Brandklassificering jf. DIN 53438 | F1 |
| Final pressure drop recommended | 450 |
| Relative humidity [%] | 100 |
| Operating temperature max. [C°] | 100 |
| Max. temperature short peaks [C°] | 180 |
| AirFlow [m³/t] | 900 |
| Humidity max. [%] | 100 |
| Initial pressure drop [Pa] | 25 |
