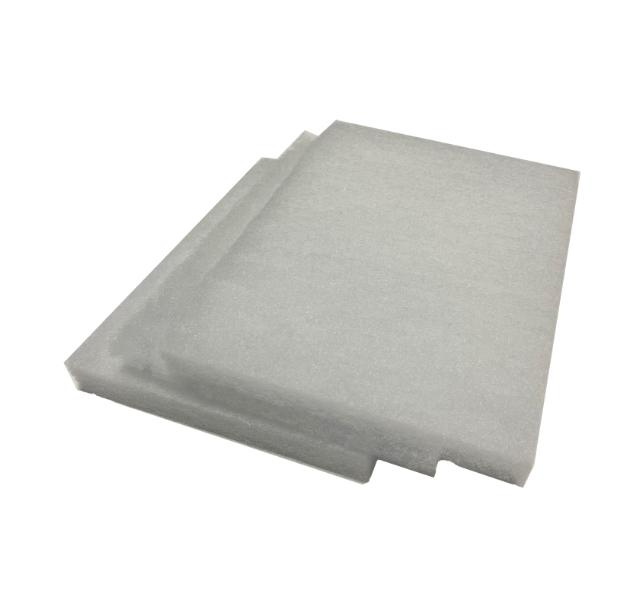

Filter mat ISO Coarse 65%/G4 365x785mm
Number: C500M365785S
Customer Service
Mai Kaas-Hansen
Effective filter media for pre-filtration and coarse particles
| Number | C500M365785S |
| Name | Filter mat ISO Coarse 65%/G4 365x785mm |
| Classification list |
|
Add to cart and request a quote to get a price.
SPACER
Your are not logged in
You have to log in to see our prices and to make purchases in the webshop.
Thermally bonded and rigid so it doesn't collapse
Easy to handle and install - no skin irritation
Easy to handle and install - no skin irritation Fire tested - self-extinguishing according to several standards
Resistant to chemical effects from solvents and toxic fumes
Easy disposal as combustible material
Specifications
| Applications | Comfort ventilation , Industrial and process ventilation |
| Width | 365 mm |
| Length | 785 mm |
| Thickness | 24 mm |
| Filter media | Synthetic |
| Filterklasse | ISO 16890: Coarse 65% (EN 779: G4) |
| Brandklassificering jf. DIN 53438 | F1 |
| AirFlow [m³/t] | 3600 |
| Initial pressure drop [Pa] | 32 |
| Final pressure drop recommended | 250 |
| Operating temperature max. [C°] | 100 |
| Max. temperature short peaks [C°] | 102 |
| Relative humidity [%] | 100 |
