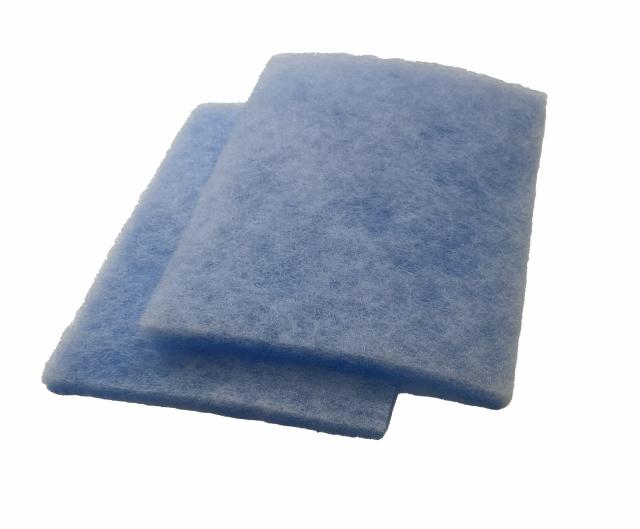

Filter mat ISO Coarse 50/G3
Number: SIMAS 1150/M2
Customer Service
Mai Kaas-Hansen
Filter media in polyester - not woven and thermally bonded
| Number | SIMAS 1150/M2 |
| Name | Filter mat ISO Coarse 50/G3 |
| Classification list |
|
Add to cart and request a quote to get a price.
SPACER
Your are not logged in
You have to log in to see our prices and to make purchases in the webshop.
High dust collection capacity
Strong media - thermally and mechanically bonded
Fire retardant - safe use cf. DIN 53438
Supplied as rolls or mats in many sizes
Specifications
| Applications | Comfort ventilation , Industrial and process ventilation |
| Width | 2000 mm |
| Length | 20000 mm |
| Thickness | 17 mm |
| Filter media | Polyester |
| Average weight [g/m²] | 190 |
| Filterklasse | ISO 16890: Coarse 50% (EN 779: G2/G3) |
| Brandklassificering jf. DIN 53438 | F1/F1/K1 |
| Farve på filtermediet | Blå på støvsiden |
| AirFlow [m³/t] | 5400 |
| Initial pressure drop [Pa] | 48 |
| Operating temperature max. [C°] | 100 |
