Filter mat ISO Coarse 50%/G2, 1x40 m
Number: C15-150/1
Customer Service
Mai Kaas-Hansen

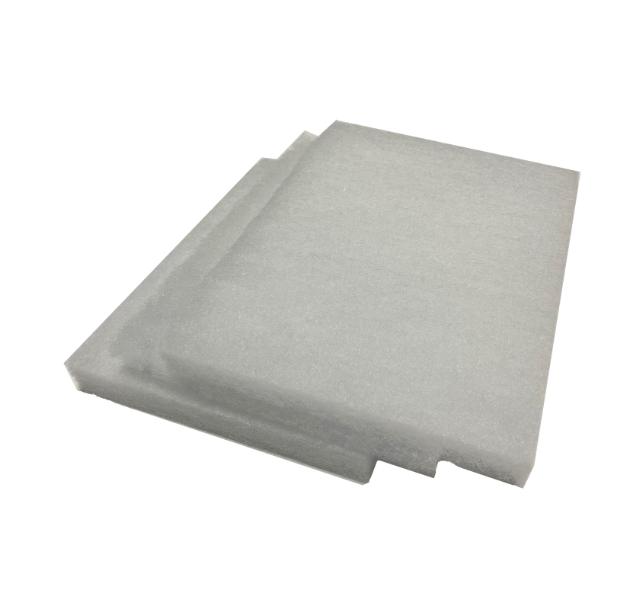

Effective filter media for pre-filtration and coarse particles
| Number | C15-150/1 |
| Name | Filter mat ISO Coarse 50%/G2, 1x40 m |
| Classification list |
|
Add to cart and request a quote to get a price.
SPACER
Your are not logged in
You have to log in to see our prices and to make purchases in the webshop.
Thermally bonded and rigid so it doesn't collapse
Easy to handle and install - no skin irritation
Fire tested – self-extinguishing according to several standards
Resistant to chemical effects from solvents and toxic fumes
Easy disposal as combustible material
Specifications
| Applications | Comfort ventilation , Industrial and process ventilation |
| Width | 1000 mm |
| Length | 40000 mm |
| Thickness | 14 mm |
| Filterklasse | ISO 16890: Coarse 50% (EN 779: G2/G3) |
| Filter media | Synthetic |
| Brandklassificering jf. DIN 53438 | F1 |
| Final pressure drop recommended | 250 |
| Relative humidity [%] | 100 |
| Operating temperature max. [C°] | 100 |
| Max. temperature short peaks [C°] | 120 |
| AirFlow [m³/t] | 5400 |
| Initial pressure drop [Pa] | 20 |
