High efficiency filter H14 acc. EN1822
Number: MP14 662829
Customer Service
Mai Kaas-Hansen

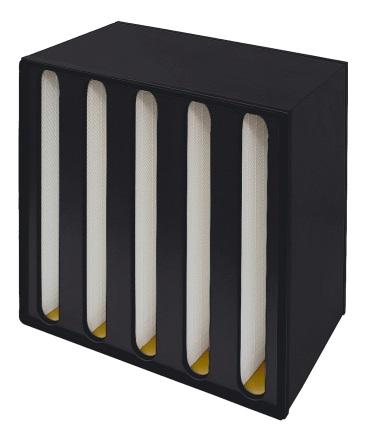

Highly efficient filter cell for ventilation and industrial processes
| Number | MP14 662829 |
| Name | High efficiency filter H14 acc. EN1822 |
| Classification list |
|
Add to cart and request a quote to get a price.
SPACER
Your are not logged in
You have to log in to see our prices and to make purchases in the webshop.
Highly efficient filter solution
Ideal for areas with high requirements for cleanliness
Light frame
Complies with high requirements for hygiene cf. VDI 6022
Specifications
| Applications | Comfort ventilation , Industrial and process ventilation , Cleanrooms |
| Width | 610 mm |
| Height | 610 mm |
| Depth | 292 mm |
| Filterklasse | EN 1822 + ISO 29463: HEPA H14 |
| Filter media | Fiberglass |
| Filter frame | Plastic |
| AirFlow [m³/t] | 2800 |
| Initial pressure drop [Pa] | 250 |
| Final pressure drop recommended | 600 |
| Operating temperature max. [C°] | 80 |
| Gasket material | Poleurethane |
| Protection grids | Optional |
| Klæbemiddel | Smeltelim (hotmelt) |
