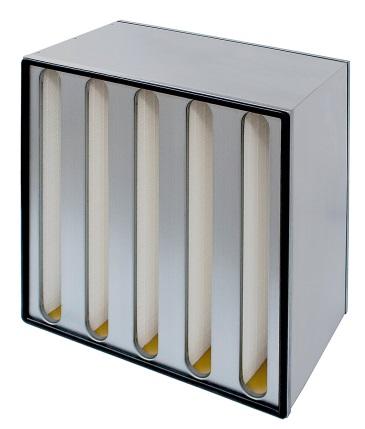

High efficiency filter, H13, 305x610x292 mm, FDA
Number: MS13 362029-FO
Customer Service
Mai Kaas-Hansen
Highly efficient filter cell for ventilation and industrial processes
| Number | MS13 362029-FO |
| Name | High efficiency filter, H13, 305x610x292 mm, FDA |
| Classification list |
|
Add to cart and request a quote to get a price.
SPACER
Your are not logged in
You have to log in to see our prices and to make purchases in the webshop.
Highly efficient filter solution
Ideal for areas with high requirements for cleanliness
Complies with high requirements for hygiene cf. VDI 6022
Flexible design - several variants and frame thicknesses
Specifications
| Applications | Comfort ventilation , Industrial and process ventilation , Food contact , Cleanrooms |
| Width | 305 mm |
| Height | 610 mm |
| Depth | 292 mm |
| Filterklasse | EN 1822 + ISO 29463: HEPA H13 |
| Filter media | Fiberglass |
| Filter frame | Stainless steel |
| Media area [m²] | 20 |
| AirFlow [m³/t] | 2000 |
| Initial pressure drop [Pa] | 250 |
| Final pressure drop recommended | 600 |
| Operating temperature max. [C°] | 80 |
| Gasket material | FDA clear silicone |
| Position Gasket | Outlet (dirty) side |
| Klæbemiddel | Smeltelim (hotmelt) |
