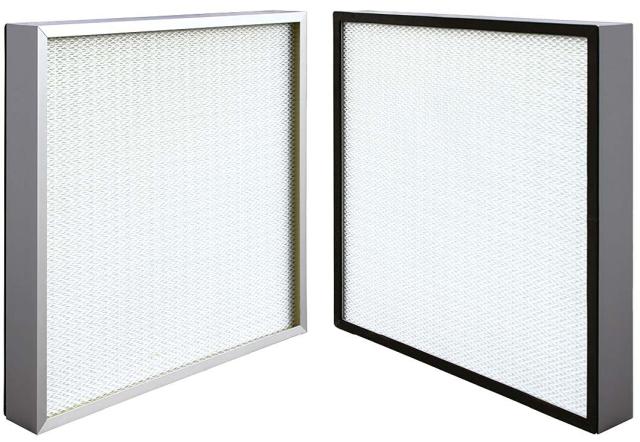

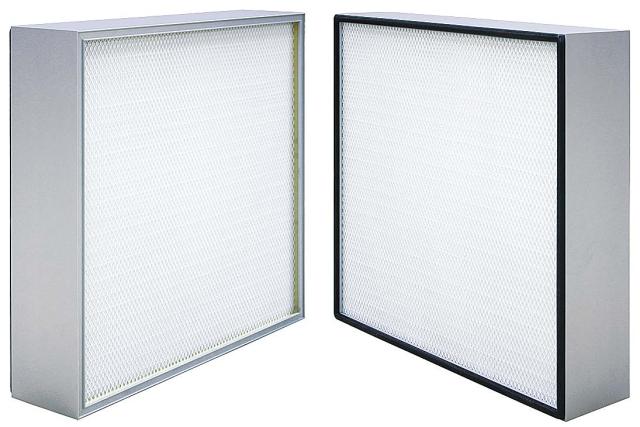

HEPA filter H14 457x1830x125 mm
Number: MA14-41830125
Customer Service
Mai Kaas-Hansen
Highly efficient filter for ventilation and industrial processes
| Number | MA14-41830125 |
| Name | HEPA filter H14 457x1830x125 mm |
| Classification list |
|
Add to cart and request a quote to get a price.
SPACER
Your are not logged in
You have to log in to see our prices and to make purchases in the webshop.
Highly efficient filter solution
Ideal for areas with high requirements for cleanliness
Complies with high requirements for hygiene cf. VDI 6022
Flexible design - several variants and frame thicknesses
Specifications
| Applications | Industrial and process ventilation , Cleanrooms |
| Width | 457 mm |
| Height | 1830 mm |
| Depth | 125 mm |
| Filterklasse | EN 1822 + ISO 29463: HEPA H14 |
| Filter media | Fiberglass |
| Filter frame | Aluminium |
| AirFlow [m³/t] | 1350 |
| Initial pressure drop [Pa] | 120 |
| Final pressure drop recommended | 600 |
| Operating temperature max. [C°] | 80 |
| Gasket material | Moulded gasket |
| Grid position | Both sides |
| Position Gasket | Inlet (clean) side |
| Klæbemiddel | Smeltelim (hotmelt) |
