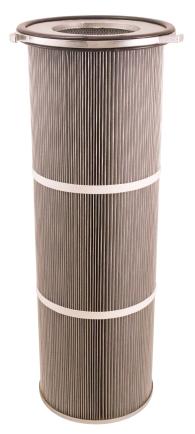

Filter cartridge ø325x1320mm Gram
Number: PFCJ325/1320/909AL/26S
Customer Service
Mai Kaas-Hansen
| Number | PFCJ325/1320/909AL/26S |
| Name | Filter cartridge ø325x1320mm Gram |
| Classification list |
|
Add to cart and request a quote to get a price.
SPACER
Your are not logged in
You have to log in to see our prices and to make purchases in the webshop.
Specifications
| Applications | Industrial and process ventilation |
| Diameter | 325 mm |
| Length | 1320 mm |
| Filter media | Polyester |
| Pleat height [mm] | 48 |
| Effective filter area [m²] | 26 |
| Indre materiale | Galvaniseret strækmetal (mesh) |
| Cap type top | Open |
| Materiale top | Aluminium |
| Gasket material top | Foam |
| Cap type bottom | Closed with a bolt hole (13 mm) |
| Materiale bund | Galvaniseret stål |
| Operating temperature max. [C°] | 80 |
