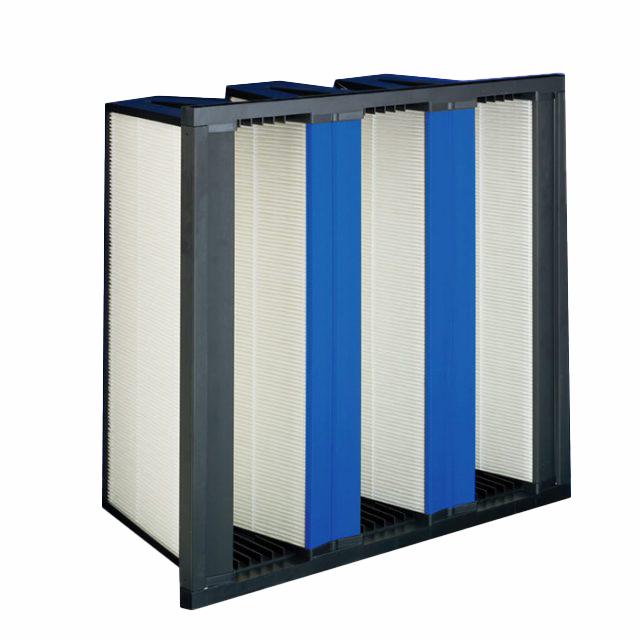

Compact filter ISO ePM1 80%/F9, 592x592x292 mm
Number: CO 09-66-BL
Customer Service
Mai Kaas-Hansen
Compact filter "blue line" for areas with permanent high humidity.
| Number | CO 09-66-BL |
| Name | Compact filter ISO ePM1 80%/F9, 592x592x292 mm |
| Classification list |
|
Add to cart and request a quote to get a price.
SPACER
Your are not logged in
You have to log in to see our prices and to make purchases in the webshop.
Easy and flexible installation
High stability – suitable for harsh operating conditions
Withstands permanent high humidity
High separation rate at low pressure differences
Certified according to hygiene standards
Specifications
| Applications | Industrial and process ventilation |
| Width | 592 mm |
| Height | 592 mm |
| Depth | 292 mm |
| Filterklasse | ISO 16890: ePM1 80% (EN 779: F9) |
| Filter media | Synthetic |
| Filter frame | Plastic |
| Media area [m²] | 13.3 |
| Brandklassificering jf. EN 13501 | E |
| AirFlow [m³/t] | 4250 |
| Initial pressure drop [Pa] | 175 |
| Pressure drop max. [Pa] | 300 |
| Operating temperature max. [C°] | 80 |
| Relative humidity [%] | 100 |
| Sealant | Hotmelt |
